Fiber Solutions

Insheild provides an extensive range of fiber optic cables designed for optimal data transmission. Enjoy high-speed connectivity with our reliable Fiber Solutions, conveniently available for all your nearby networking needs.

Fiber Cables
Accessories

These cables don't just transmit data; they carry the promise of a brighter, faster future.

Experience the future of connectivity with our fiber cable collection. Engineered for speed, precision, and reliability, our fiber cables redefine data transmission. Dive into a world where every connection is a pathway to seamless communication. Explore the potential of fiber optics – where speed meets clarity, and innovation meets reliability.

Fiber Range : 2/4 Core

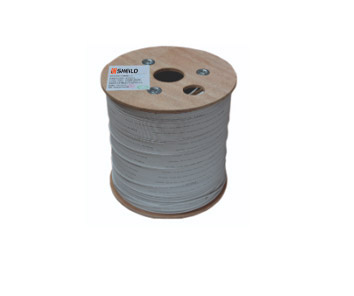

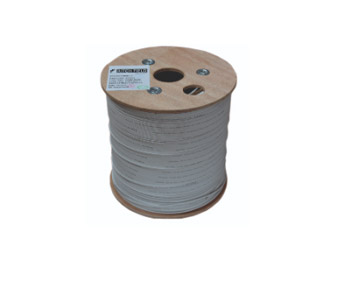

Single Mode Drop Cable - FTTH Indoor

Experience the next level of high-speed connectivity with Insheild's 2/4 Core Single-Mode Drop Cable, specially crafted for Fiber to the Home (FTTH) indoor installations.

Characteristics

Core Concentricity Error : ≤0.6µm
Cladding Non-Circularity : ≤1.0%
Primary Coating Diameter : 250±15µm
Coating - Cladding Concentricity Error: ≤12.5µ
Cable Weight : 8kg/km
Cable Diameter : 3.1*2.0MM
Fiber Range : 2/4 Core
Fiber Type : G657A, G657B or G652D

Download Data Sheet

Number of fiber : 1-48 cores

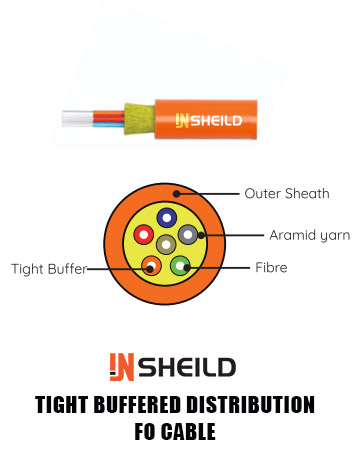

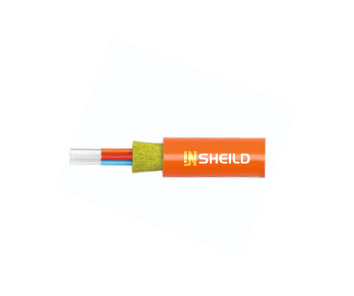

Tight Buffered Distribution FO Cable

Unlock the potential of high-speed data transmission with Insheild's Tight Buffered Distribution Fiber Optic Cable.

Insheild Tight Buffered Distibution indoor Fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strengthmember over cp900µm or cp600µm tight buffer fibers and then is completed with PVC/ LSZH jacket.

Characteristics

Hight strength aramid yarn member.
More tight buffeed design.
Round construction.
Saft. Easy to strip.

Download Data Sheet

Fiber core : 2-12

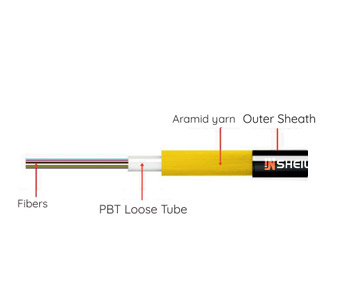

Central Loose Tube Indoor - Outdoor FO Cable

Experience unparalleled connectivity with Insheild's Central Loose Tube Indoor-Outdoor Fiber Optic Cable, designed to seamlessly bridge the gap between indoor and outdoor environments.

€haracteristics

Loose tube jelly filled for superior fiber protection
Loose Tube construction provides environmental protection
UV or moisture resistant for outdoor application
Colored coded fibers and binders for quick and easy identification during installation
Very lightweight and flexible design allows for easy installation
High quality outer sheath
Inner aramid yarn protection
Fiber core:2-12

Download Data Sheet

Adopted to Outdoor distribution

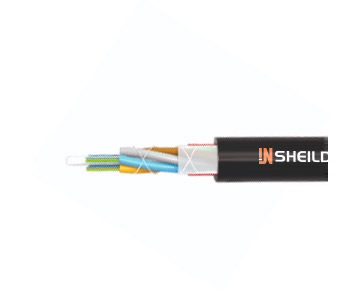

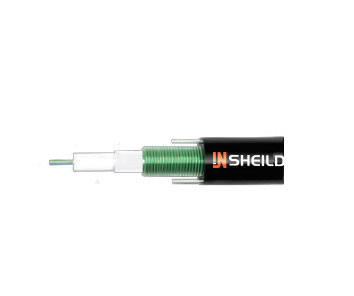

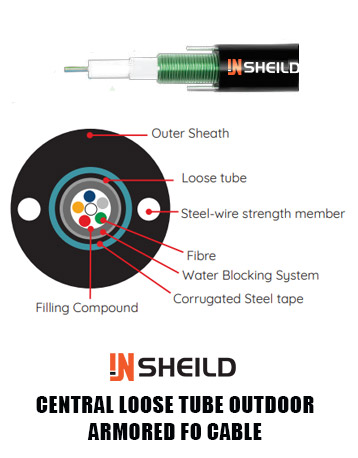

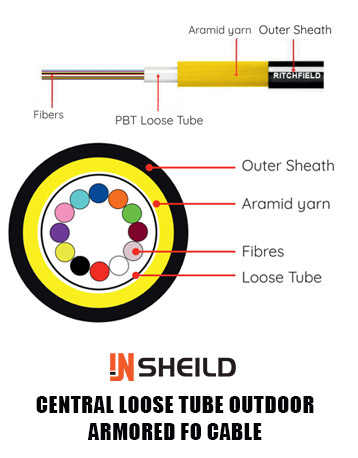

Central Loose Tube Outdoor Armored FO Cable

Empower your outdoor network infrastructure with Insheild's Central Loose Tube Outdoor Armored Fiber Optic Cable.

Characteristics

Steel-wire parallel member ﬁller protect tube ﬁber steel tape amored.
Excellent mechanical and environmental performance.
Compact structure light weight.
Can be installed conveniently and operated simply.

Download Data Sheet

Adopted to Indoor & Outdoor Distribution

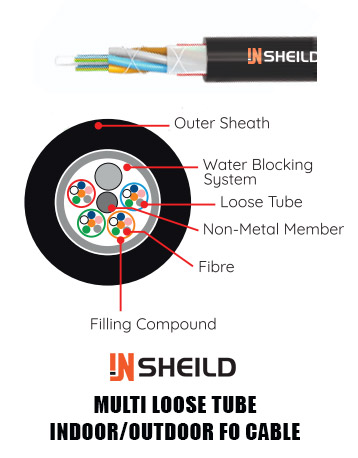

Multi Loose Tube Indoor/Outdoor FO Cable

Unleash the power of seamless connectivity with Insheild's Multi Loose Tube Indoor/Outdoor Fiber Optic Cable. Versatile and robust, this cable is designed to meet the demands of both indoor and outdoor installations, providing a reliable solution for various networking applications.

Characteristics

Non-metal strength member
Filler protect loose tuber fiber
Non-metal strength has an excellent-antielectromagnet ability

Download Data Sheet

Adopted to outdoor Distribution.

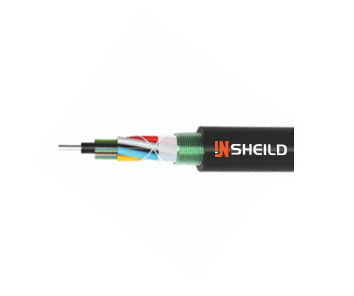

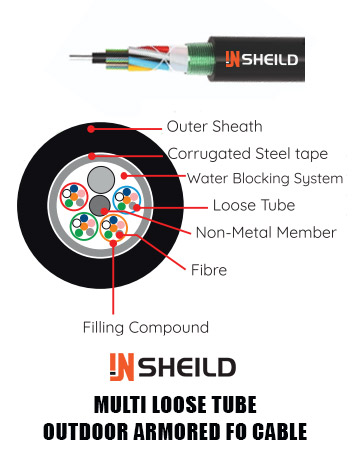

Multi Loose Tube Outdoor Armored FO Cable

Elevate your outdoor network infrastructure with Insheild's Multi Loose Tube Outdoor Armored Fiber Optic Cable.

€haracteristics

Steel wire strength filler protect tube fiber steel tape armord.
Good ultra violet radiation resistant property.
Good moisture-resistance
Loose Tube construction provides environmental protection
Loose tube jelly filled for superior fiber protection
UV resistant for outdoor application
PE black jacket or customized.

Download Data Sheet

Used in pigtails & Patchcords

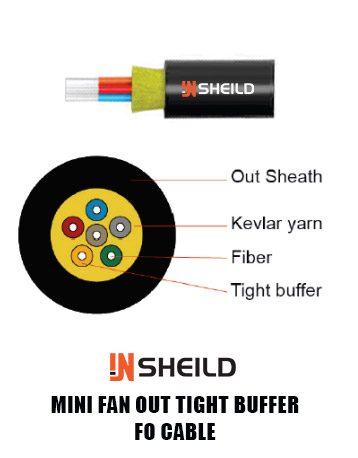

Mini Fan out Tight Buffer FO Cable

Optimize your network with the Mini Fan-Out Tight Buffer FO Cable, offering space-saving design and maximum fiber optic efficiency.

Characteristics

Good mechanical and environmental characteristics.
Flame retardant characteristics meet the requirements of relevant standards
Meet various requirements of market and clients
The mechanical characteristics of jacked meet the requirements of relevant standards.
Soft,flexible,easy to lay and splice,and with big capacity data transmission.

Download Data Sheet

Suitable for floor connection

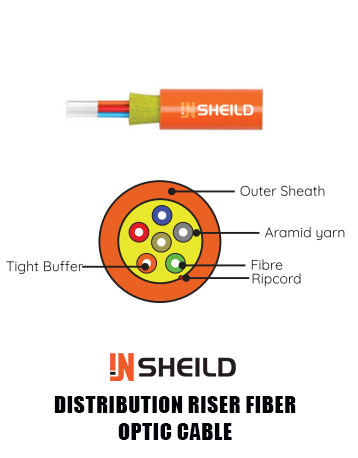

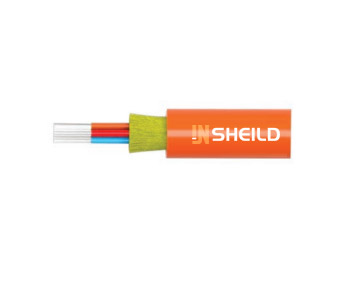

Distribution Riser Fiber Optic Cable

Engineered for vertical installations, providing reliable, high-performance connectivity in multi-story buildings.

Insheild Distribution riser fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm tight buffer fibers and then is completed with jacket.

Characteristics

High strength aramid yarn member
More tight buffeed design
Round construction
Soft easy to stripe

Download Data Sheet

Fiber type : Single Mode/Multi Mode

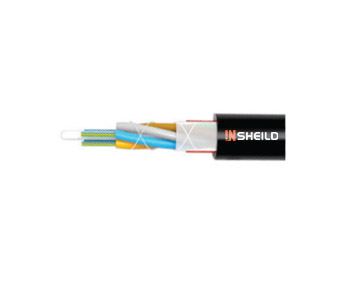

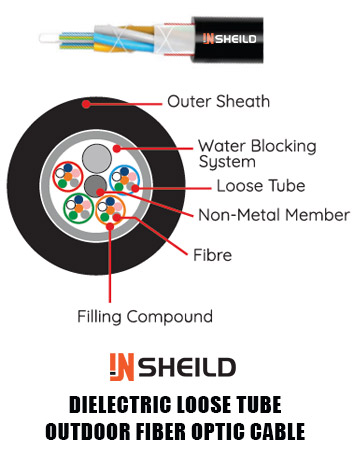

Dielectric Loose Tube Outdoor Fiber Optic Cable

Designed for optimal performance in outdoor applications, providing robust protection against environmental elements.

Insheild Dielectric Loose Outdoor Tube cable use multi-cores fibers in sub-unit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The sub-units are stranded around the core. The cable is completed with PE jacket.

Characteristics

Non-metal strength member
Gel free bare fibers
Protective loose tube

Download Data Sheet

Essential Accessories for Elevated Performance

Enhance and protect every connection with our premium fiber cable accessories. From precision-crafted connectors to durable management solutions, each accessory is designed to optimize performance, simplify installation, and extend the life of your network infrastructure. Unlock the full potential of fiber optics with the perfect finishing touches.

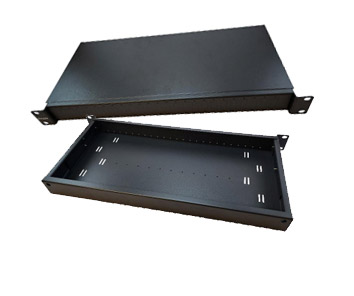

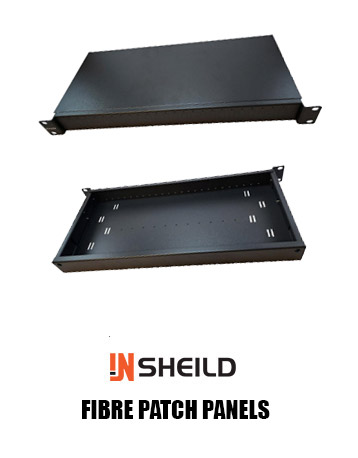

Fiber Patch Panels

Fiber optic patch panels are enclosures that act as a distribution hub for Fiber cable. A bulk (multi-strand) Fiber cable enters the patch panel and then each Fiber strand is separated into individual strands or pairs of strands. These individual strands will then connect to electronic devices designed to communicate over Fiber optic cable

Product Specification

Can be installed within the standard 19" rack & wall mounted enclosures according to IEC 297-3 specification.
Rear of panel offers a range of openings to accommodate a variety of gland configurations.
Dimensions (W x D x H) 430mm x 200mm x 40mm Fiber management kits & splice cassettes are offered as accessories.

Download Data Sheet

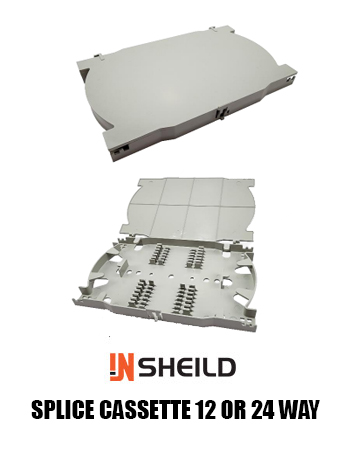

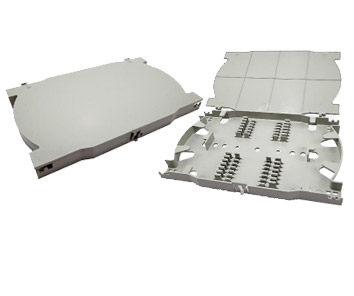

Splice Cassette 12 or 24 Way

12/24 Way Fiber Splice Cassette Tray is an excellent solution for managing and organizing your Fiber splicing needs. The tray is designed to protect and house splice protectors while efficiently managing the incoming and outgoing Fibers. The cassette tray has a capacity of up to 24 splices, allowing for multiple splices to be organized in one location. This solution is ideal for data centres, telecommunication rooms, or any space where Fiber splicing is required. The tray is designed to be durable and long-lasting, ensuring that your Fiber splicing needs are met with the highest level of quality and efficiency.

Product Specification

12/24 Way Splice Cassettes
Width - 113mm, length - 180mm, Height - 12.35mm
Minimum bend Radius > 35mm
Maximum number of Fibers - 12-24
Stacking Method - Hinged

Download Data Sheet

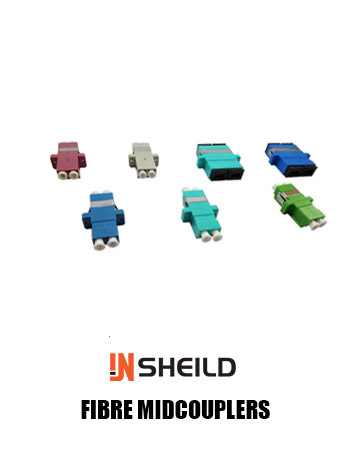

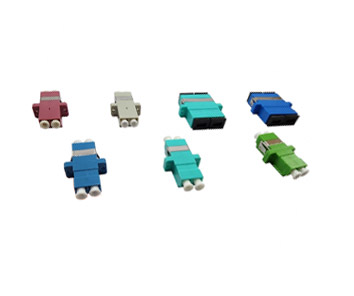

Fiber Midcouplers

Fiber Optic Adapters/Couplers are used to provide a cable- to-cable connection, bulkhead Inline adapter for Patch Panels or Termination boxes. These couplers provide a solution for extending a current run of Fiber Optic cabling. The couplers is constructed from high-grade plastic and has been designed and engineered for durability and a longevity.

Features

Metallic and Plastic housing.
Higher performance ultra and angled PC connector options.
Options for Multimode and Singlemode.

Download Data Sheet

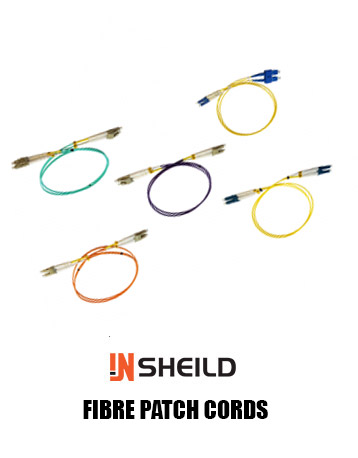

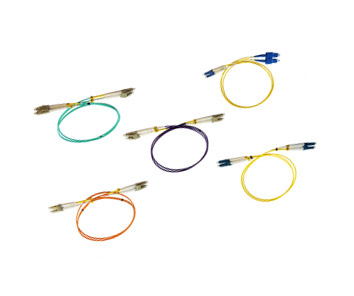

Fiber Patch Cords

Fiber patch cords also known as leads offer a highly reliable way to transmit signals, which is widely used in telecom industry. When selecting the correct Fiber patch lead for a data centres or network, it may be a challenging task since there are various types on the market.

Specification

Fiber Types » 9/125, 62.5/125, OM2, OM3, OM4
Cable Types » Duplex, Simplex, Flat Duplex
Connector Types » SC, LC, ST, PC, MTRJ, MU, FC, ESCON, E-2000, SMA
End Face Finish » PC, UPC, APC

Download Data Sheet Multimode Download Data Sheet Singlemode

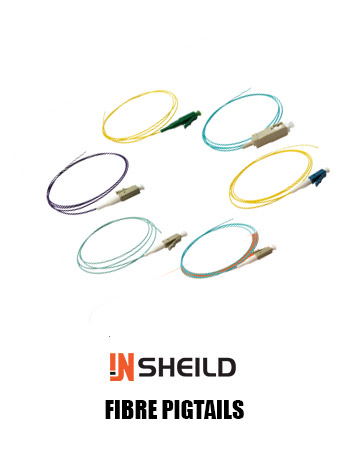

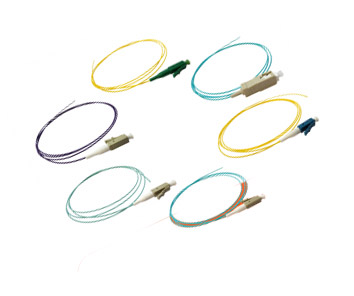

Fiber Pigtails

Fiber optic pigtail is a Fiber optic cable terminated with a factory-installed connector on one end, leaving the other end unterminated. Hence the connector side can be linked to equipment and the other side melted with optical Fiber Cables. Pigtail patch cords are utilized to terminate Fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for Fiber optic cable terminations. Fiber optic pigtails are usually found in Fiber optic management equipment like ODF's, Fiber terminal box's and distribution panels / boxes.

Specification

Fiber Types » 9/125, 62.5/125, OM2, OM3, OM4
Cable Types » Simplex, Ruggedized
Connector Types » SC, LC, ST, PC, MTRJ, MU, FC, ESCON, E-2000, SMA
End Face Finish » PC, UPC, APC

Download Data Sheet Multimode Download Data Sheet Singlemode
